DESCRIPTION FROM DUOTONE
Duotone Mast AL QM 3BS — Tool-Free Precision, Limitless Performance
Revolutionize your foiling experience with the Duotone Mast AL QM 3BS, engineered for riders who value performance, efficiency, and simplicity in every session. Designed with cutting-edge innovation, this mast eliminates the hassle of setup and teardown, getting you on the water faster than ever.
Tool-Free Convenience

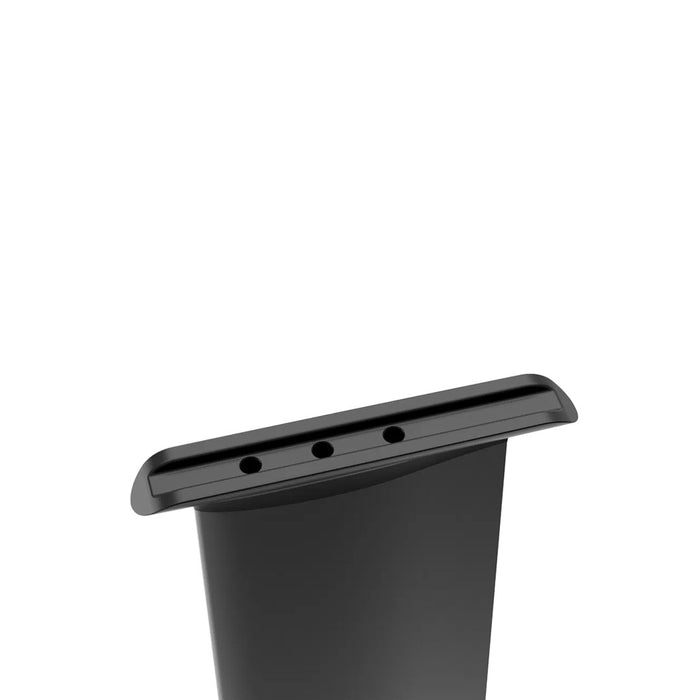

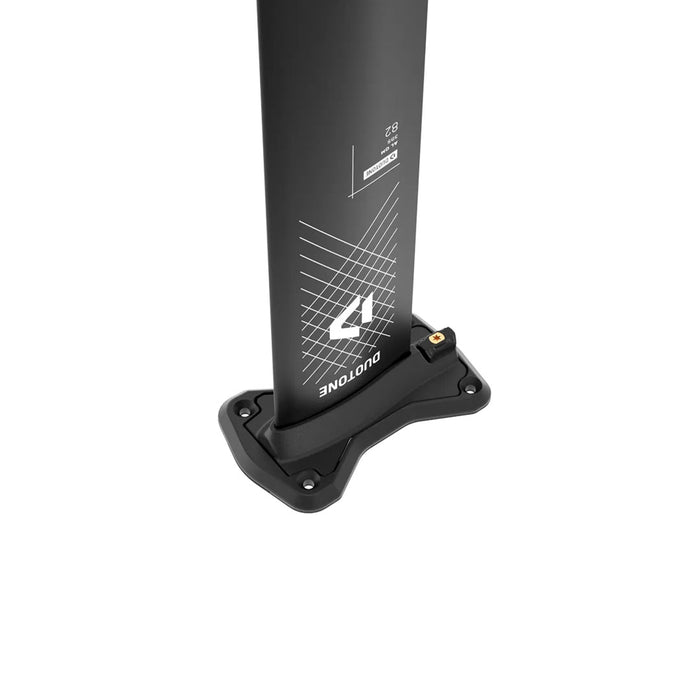

No tools, no delays — the unique Quick Mount (QM) system lets you attach and detach your foil effortlessly with a single screw. Leave your base plate perfectly positioned between sessions and enjoy consistent setup alignment every time you ride.
Unmatched Compatibility and Strength

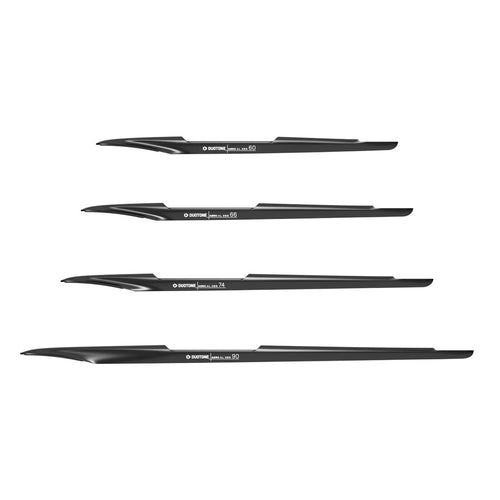

Featuring the advanced AL 3BS+ connection, the Mast AL QM 3BS seamlessly integrates with the entire Duotone foil range, including Aero AL 3BS fuselages and D/LAB foils with fuselage tails. The innovative Mono Claw design and standard foil mounting dimensions ensure uncompromised load distribution for superior performance and stability.
Engineered for Reliability
Built to endure session after session, the mast incorporates Helicoil threads for reinforced strength and durability, guaranteeing secure connections and long-lasting performance.
Performance Across All Disciplines

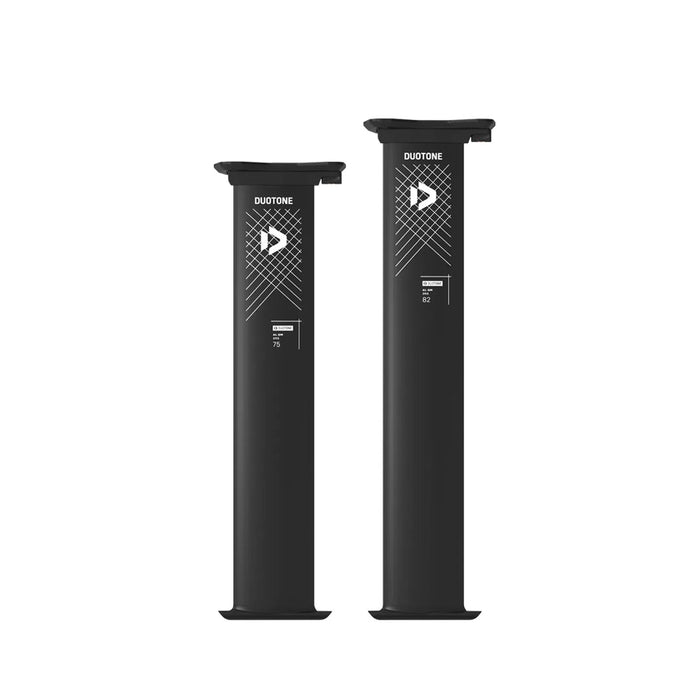

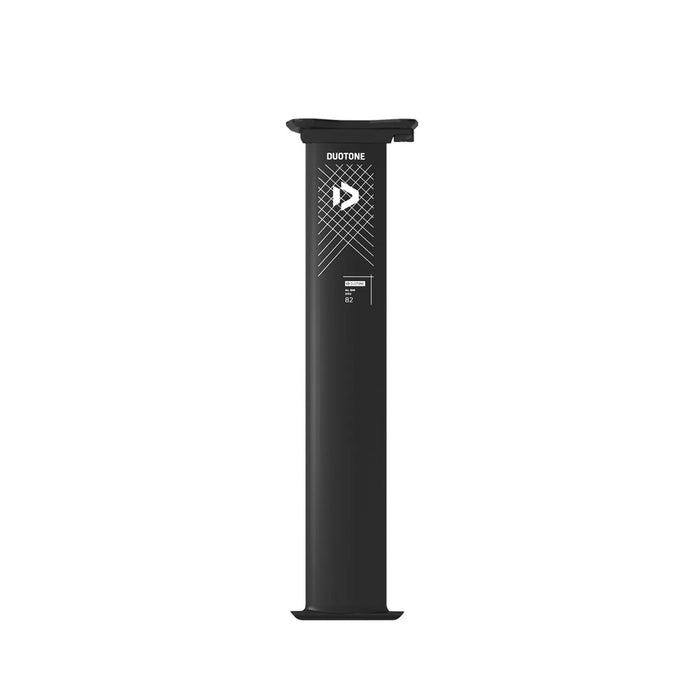

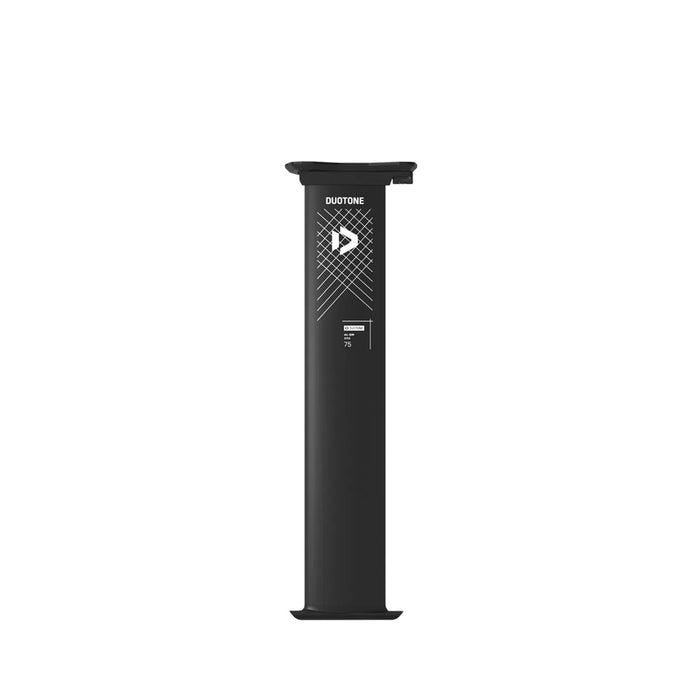

Available in 75cm and 82cm lengths, the Duotone Mast AL QM 3BS is your all-around solution for freeride, surf, and wing foiling. Lightweight yet incredibly robust, it delivers the precision and efficiency demanded by serious riders.
Duotone Mast Sizes and Specs
| Specification | 75 cm Mast | 82 cm Mast |
|---|---|---|
| Length (cm) | 75 | 82 |
| Chord (mm) | 135 | 135 |
| Thickness (mm) | 18.2 | 18.2 |
| Weight (kg ±5%) | 2.42 | 2.56 |
| Screws 3BS | 2x M8x60 TX45 + Middle M8x35 TX45 | 2x M8x60 TX45 + Middle M8x35 TX45 |
| Recommended Torque | 15 Nm M8 | 15 Nm M8 |
| Construction | Aerospace grade Aluminium | Aerospace grade Aluminium |
| Disciplines | Wing, Prone, Kite, SUP, Downwind, Pump | Wing, Prone, Kite, SUP, Downwind, Pump, Windsurf |
| Conditions | Flat water lakes to small size surf | All water states – lakes to medium size surf |
| Character | Hassle-free setup, easy, maneuverable, compact in the air | Hassle-free setup, direct response, great allrounder |
| Compatibility / Fuselages | D/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone Carbon | D/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone Carbon |
